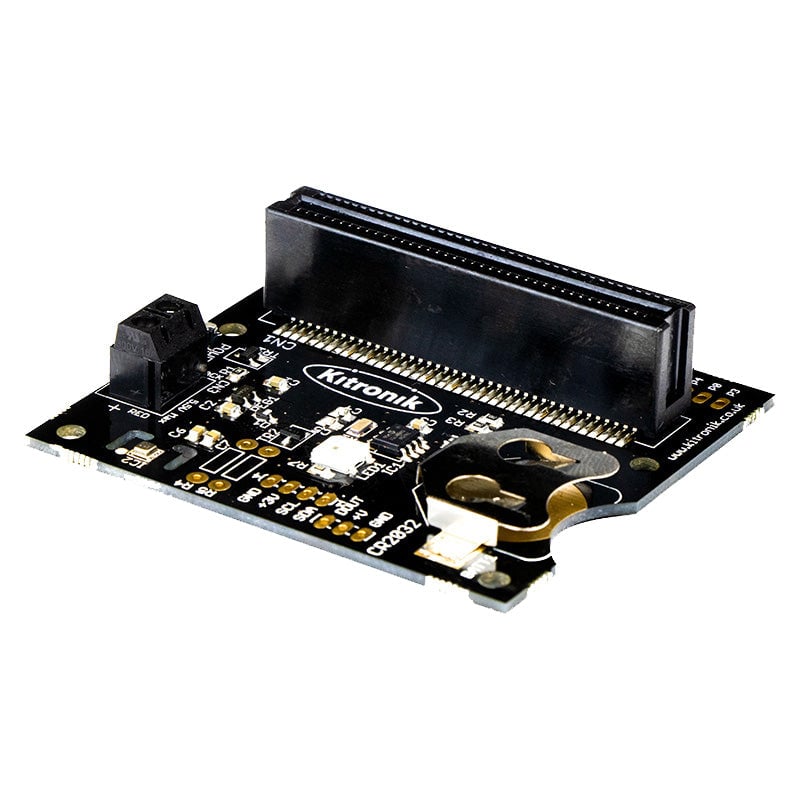

Kitronik Klimate Board for the BBC micro:bit

Stock code: 5636
filler

Pricing:Ex VATInc VAT
1+
£16.66
£19.99
10+ £15.00 £18.00
50+ £13.50 £16.20
Stock:
In stock

Bundled options

Kitronik Klimate Board plus coin cell batteries

large rtc klimate microbit real time clock climate monitoring+ large cr2032 lithium coin cell

Total: £17.91ex VAT

Kitronik Klimate Board plus coin cell batteries and micro:bit

large rtc klimate microbit real time clock climate monitoring+ large cr2032 lithium coin cell+ large bbc microbit board only

Total: £28.40ex VAT

Description

AttributeValue
Voltage Rating +5.5V Max.
Typical Current Draw 14mA.
Battery Backup CR2032 3V 200mAh.
Typical backup battery life in stand-by mode > 1 year.
BME280 Operation Range;Pressure 300hPa – 1100hPa.
Temperature -40°C – 85°C.
Humidity 0%RH

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.
Please note: Instructions for using this product (if available) can be found in the product description.
Adding ZIP Hex LEDs To The Simple Robotics Buggy Kit

A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit

Adding ZIP Hex LEDs To The Simple Robotics Buggy Kit

A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit

Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on the Kitronik :CITY layout we...

Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on...

Q:
Hello, I have a couple of questions concerning the RTC:
1. What is the reference address name (to be used in Make code) of single ZIP LED, which I guess needs the Pixel extension also to work?
2. I have the 32text LCD screen attached to the Klimate (thanks for your separate help of this). Additional question the Microbit own matrix LED auto scrolls data from the Klimate even though it is not included in the makecode program, is this correct?

Many Thanks Steve

Many Thanks Steve
Asked by: Steven Carter
A:
Hi Steven,

Thank you for your question, regarding the ZIP LED on the board it is controlled from PIN 0 of the micro:bit so you would state a range of 1 attached to Pin 0. If its the extension port then this links to Pins 19 and 20.

Could you send me over the code and I can take a look to see what's happening for you with the scrolling.

Best Regards

Cullen
Answered by: Cullen Lewis
21-May-20

Q:
In your illustrations the MicroBit is shown inserted with display side facing away from the link pads. On the PCB it says "Link Pads only active when BBC microbit display facing this side". Does that mean that the link pads are not accessible when using the Klimate board as it is shown inserted with the display facing away from the link pads? Your answer to Maarten's post (03/02/19) gives me the impression that the MicroBit can be inserted both ways round.
Asked by: Simon Balderson
A:
Hi Simon,

The micro:bit can be inserted either way round into the card reader and it will still be able to make use of everything pictured on the left hand side of the board.

If it was inserted with the pixel display not facing the link header pads you would not be able to use the link pad but the rest of it would still work. If you inserted it the opposite way round so the led display faces the link pads you could use the full functionality of the board.

Best Regards

Cullen
Answered by: Cullen Lewis
04-May-20

Q:
More questions!

1. To which micro:bit port is the onboard Zip LED1 on the Klimate board connected?
2. To which micro:bit port is the Zip expansion port on the Klimate board connected?
3. There are two empty pads on the PCB marked R4 and R5. What are these intended for?
Asked by: Steve Smythe
A:
Hi Steve,

Thank you for your question, the ZIP LED is on Pin 0. The expansion port is on Pin 1. The R4/ R5 are for if you want to add pull up resistors to the I2C line.

Best Regards

Cullen
Answered by: Cullen Lewis
11-Mar-19

Q:
The datasheet says "An example microPython use is available from KITRONIK GIT HUB https://github.com/KitronikLtd". I couldn't find this - only the PXT blocks. Where can I find the micropython examples? Thanks.
Asked by: Steve Smythe
A:
Hi Steve,

Thank you for your question, I do apologise that is a mistake in our data sheet. We were originally creating micro python code for this but were unable to complete the project.

Unfortunately micro python takes up a lot of space with the code and because the code you would need to run this board is quite complex it take sup more space than the micro:bit can handle.

Apologies for any confusion this has caused!

Best Regards

Cullen
Answered by: Cullen Lewis
05-Mar-19

Q:
Is it possible to use the klimate board's RTC and sensors and some digital outputs at the same time? My son wants to build an automated mini greenhouse (controlling the light and a water pump using two relays and the ventilation openings using a servo).
The 'link pads only active when BBC microbit display facing this side" in combination with the movie where the display faces the other side made me doubt. On the other hand, if I had design a board like this, I would just connect all sensors to the I2C bus and keep the other outputs available.
Can someone help me out?
Asked by: Maarten
A:
Hi Marten,

Thank you for your email, it is set up to run the sensors through the I2C bus and you can run outputs and sensors from it at the same time. You would need to have the micro:bit facing the pins rather than the rest of the board basically because of the set up of the micro:bit.

Best Regards

Cullen
Answered by: Cullen Lewis
04-Mar-19
