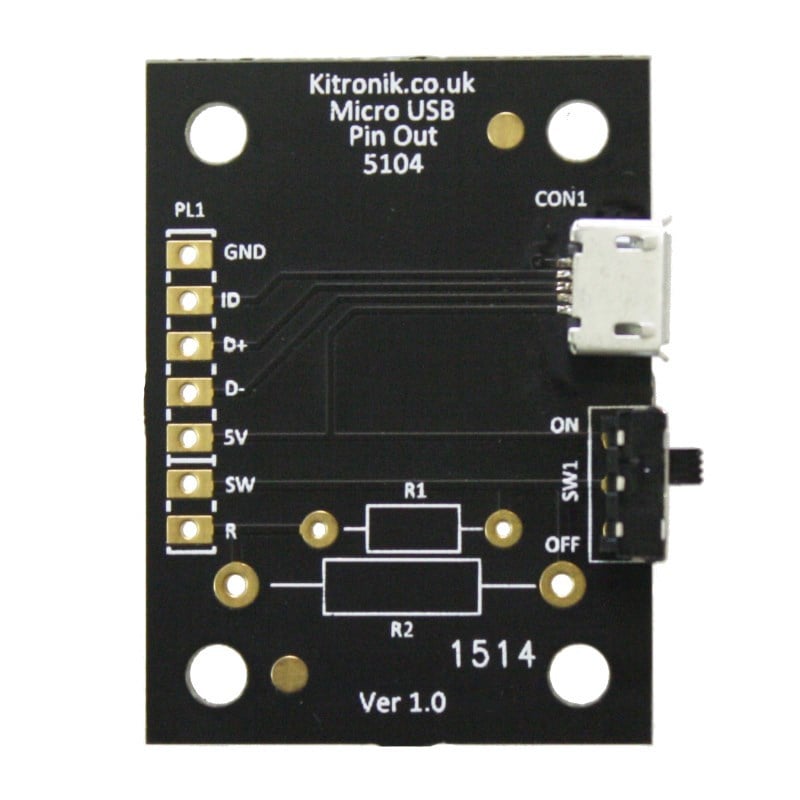

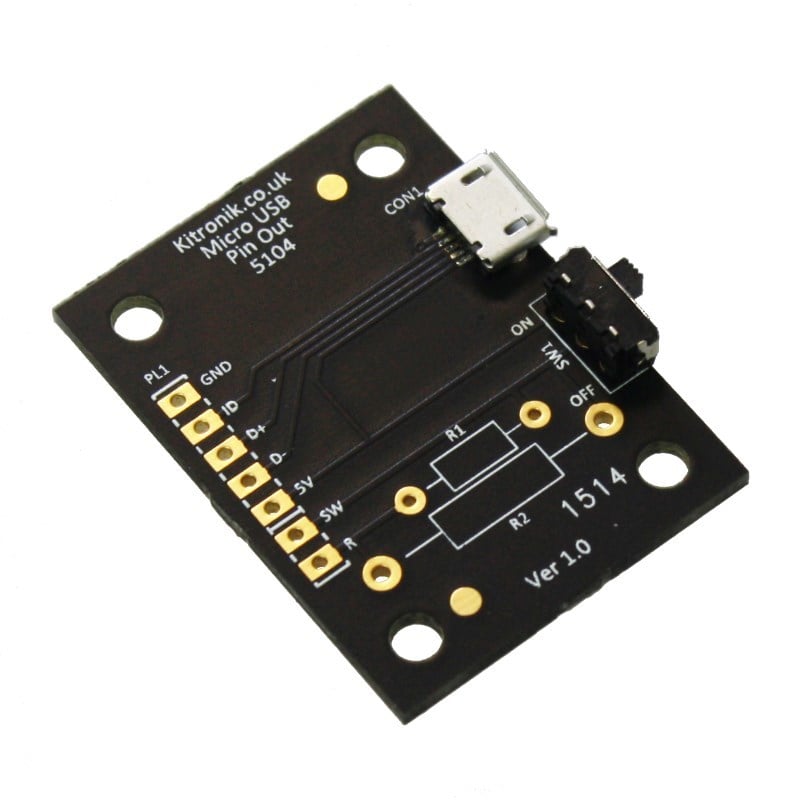

Kitronik Micro USB Breakout Board, with Power Switch

Stock code: 5104
filler

Pricing:Ex VATInc VAT
1+
£2.92
£3.50
10+ £2.00 £2.40
Stock:
Only 140 units left

Bundled options

Micro USB Breakout Board plus power supply

large micro usb breakout+ large 5v 1a micro usb uk mains wall power supply

Total: £7.41ex VAT

Description

AttributeValue
Length 38mm.
Width 28mm.
Voltage Nominal 5V.
Voltage Range 3.5V to 6V.
Current Max at Nominal Voltage 0.3A (With switch).
Current Max at Nominal Voltage 0.75A (Without switch).

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.
Q:
Is it possible to power a Microbit using this board? If so, what resistor would be required? Thanks.
Asked by: Nick
A:
Hi Nick,

I wouldn't recommend it. If you were connecting to the micro USB on the micro:bit you might as well just connect the micro USB directly and if you were connecting to the JST you would likely blow the board even with a resistor.

Best Regards

Cullen
Answered by: Cullen Lewis
18-May-20

Q:
We are planning to use a micro usb breakout board (5104) with the 2155-lamp kit. Can you tell me please the size of the resister that we should use and which connectors on the board to use Ground and R ? Is this correct. Thank you.
Asked by: robert wallace
A:
Hi Robert, As the 5V desk lamp kit already has resistors you shouldn't need to place one on the breakout board. Instead you would use the 5V and GND pin for direct power or SW and GND if you wanted to make use of the switch.
Answered by: Michael Lockhart
25-Jan-19

Q:
The connections to R1 are given in the data sheet. What are the connections to R2?
Also, what are the heights above board for the connector and switch?
Asked by: J McKillop
A:
Hi there,

Thank you for your question, the R2 uses the same connections as the R1 it is simply a space for a bigger power resistor should you need one.

The connector is approximately 3mm proud of the board and the switch is approximately 4mm.

Best Regards

Cullen
Answered by: Cullen Lewis
12-Dec-18
