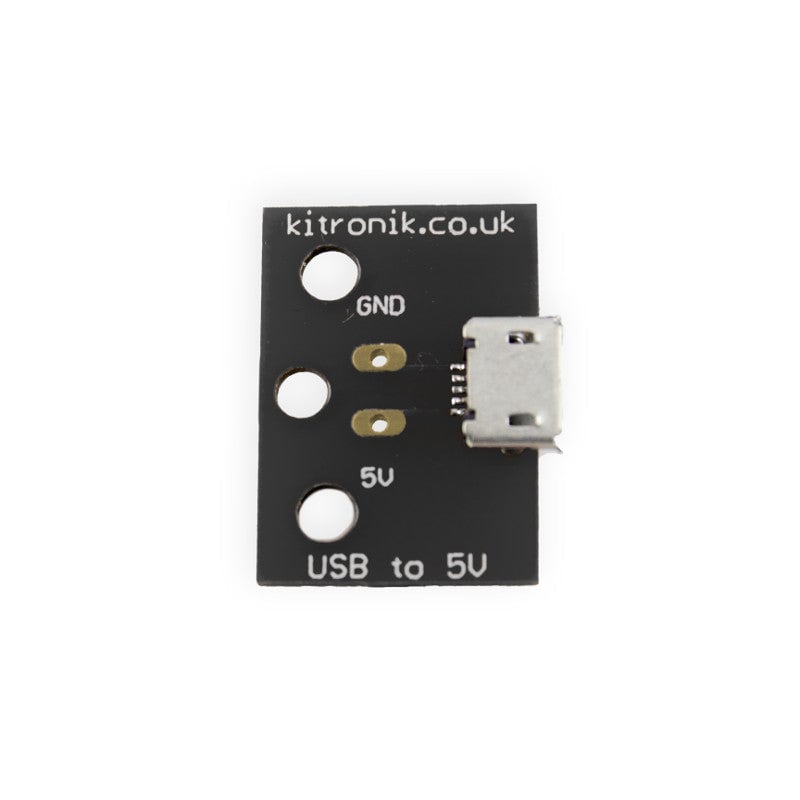

large usb to 5v breakout board

Kitronik Micro USB to 5V breakout

Stock code: 5109
Pricing:Ex VATInc VAT
1+£0.80
(excl. VAT)
£0.96
(excl. VAT)
10+£0.60
(excl. VAT)
£0.72
(excl. VAT)

Available while stocks last - 58 left!

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Buy locally from a partner

SKU: 5109 Categories: , , , , Tag: Brand:

This compact Micro USB Breakout Board offers an easy way of connecting circuits to the 5V power lines that a USB connection supplies. The output (5V and Gnd) connections are two large solder-able pads on the PCB.

This board is ideal for replacing batteries in a variety of circuits such as our Mono Amp kit. It is compatible with Micro USB chargers supplied with most mobile phones and tablets.

Features:

  • Power your electronics projects via USB.
  • Compatible with projects such as the Kitronik Mono Amp kit.

Contents:

  • 1 x USB to 5V Breakout Board.

Dimensions:

  • PCB Length: 22mm.
  • PCB width: 16mm.

Requires:

Note:

  • Some soldering required to connect the breakout board to your project.
  • PC USB ports normally supply 100mA up to an absolute max of 500mA. If you plug anything in that requires a higher current, damage to the USB port is possible.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “Kitronik Micro USB to 5V breakout”

Your email address will not be published. Required fields are marked *

Questions and answers

    What resistor do I need to connect this to 3W White Power LED Star ?available here: https://www.kitronik.co.uk/3548-3w-white-power-led-star.htmlit works without one but gets way too hot.I'm going to be powering this from a pc usb port or a wall plug charger if that matters.Thank you.
  1. 0 votes
    Q What resistor do I need to connect this to 3W White Power LED Star ?available here: https://www.k...... Read more
    Asked by Anonymous on May 27, 2020 12:00 am
    Answered by the admin Hi there,

    Thank you for your question, I would point towards a resistor like the below.

    https://www.kitronik.co.uk/c3009-2r2-wirewound-resistor-25w-22r-ohms.html

    Best Regards

    Cullen
    2. Can the micro USB port be used to output the 5V into a phone or similar device rather than being used to power the circuit.
  2. 0 votes
    Q Can the micro USB port be used to output the 5V into a phone or similar device rather than being ...... Read more
    Asked by Anonymous on October 18, 2019 12:00 am
    Answered by the admin Hi Tim,

    Thank you for your question, in theory yes provided you have the relevant cables.

    Best Regards

    Cullen
    3. Hi,Do you have any Technical specs for this board yet? Dimensions of the board etc? I'm looking to include in a CAD casing design but don't know what measurements to use. A CAD (.stp) file would be a great addition also.Thanks, loving the Kitroniks boards!Tim
  3. 0 votes
    Q Hi,Do you have any Technical specs for this board yet? Dimensions of the board etc? I'm looking ...... Read more
    Asked by Anonymous on February 19, 2019 12:00 am
    Answered by the admin HI Tim,

    Thank you for your question and your kind words! I am afraid we do not have a CAD file for this but the dimensions are 22mm by 16mm and our web page should have been updated with this information.

    If there is any other information you need just let me know!

    Best Regards

    Cullen
    4. Is the Kitronic Micro USB to 5V breakout compatable to fit an iphone charger ?
  4. 0 votes
    Q Is the Kitronic Micro USB to 5V breakout compatable to fit an iphone charger ?
    Asked by Anonymous on January 31, 2019 12:00 am
    Answered by the admin HI Xavier,

    Thank you for your email, I am afraid not the connector port is a micro USB B port

    Best Regards

    Cullen
