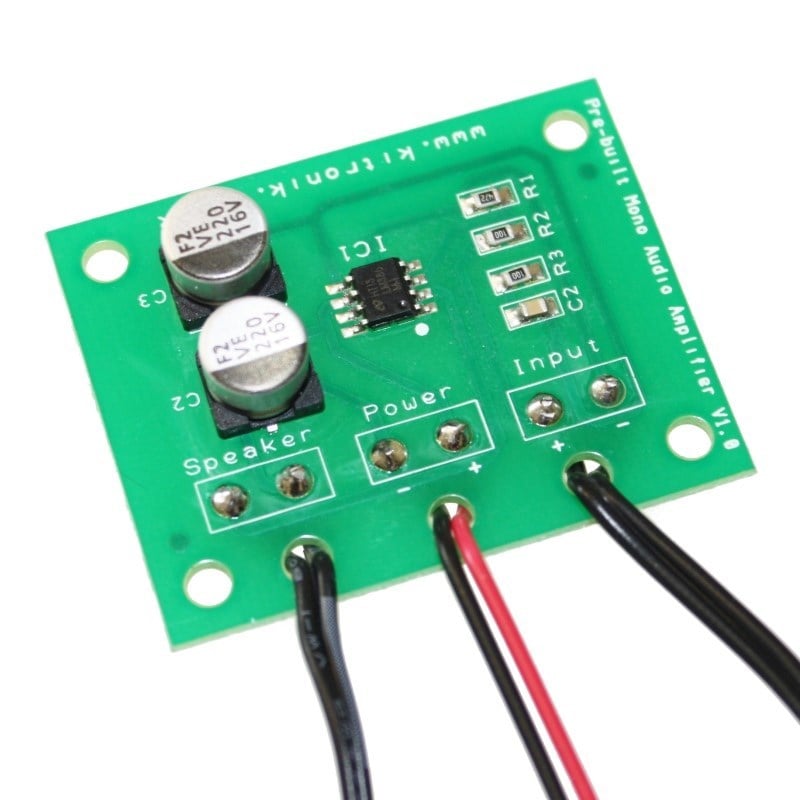

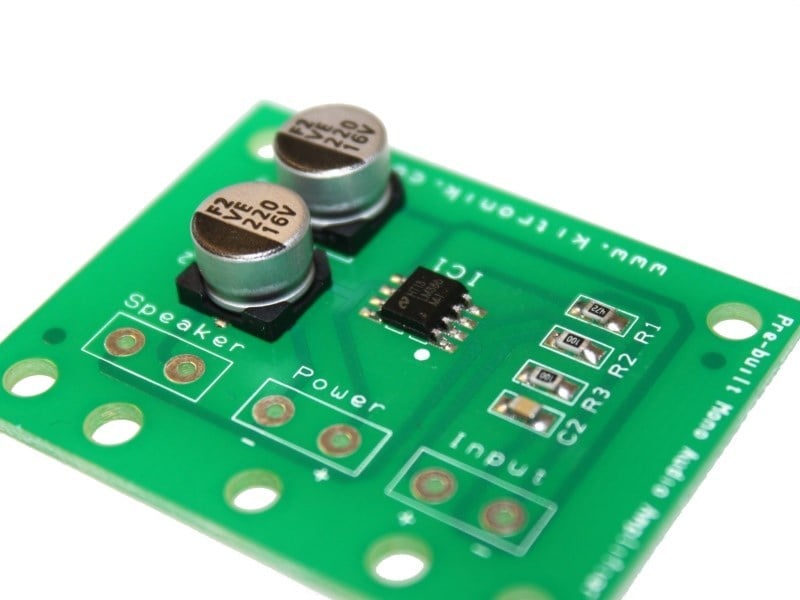

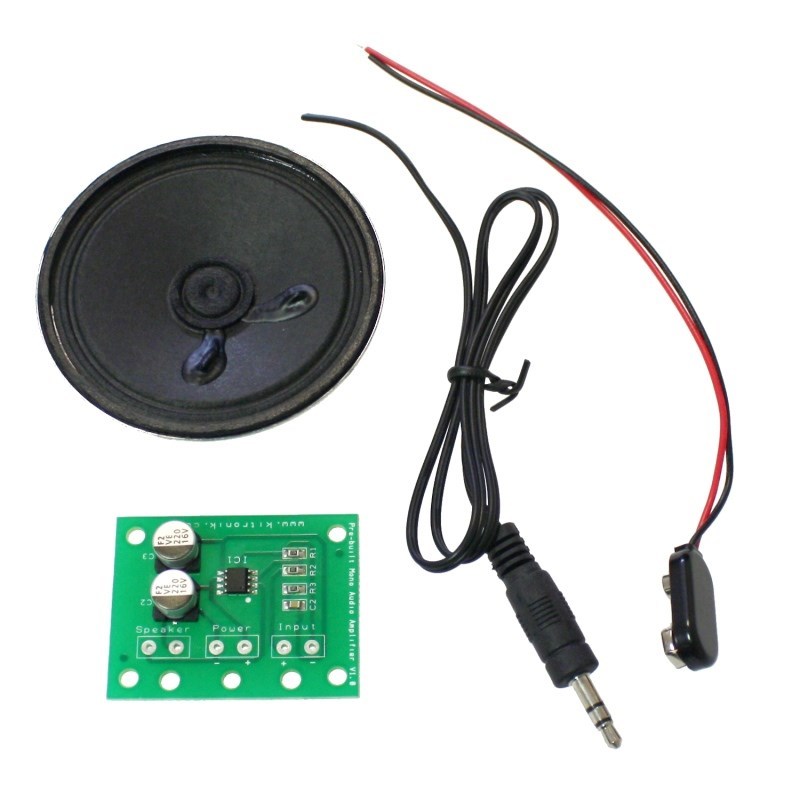

MP3 Mono Amplifier V2.0, Pre-built

Stock code: 2154B
filler

Pricing:Ex VATInc VAT
1+ £4.05
(excl. VAT)
£4.86
(inc. VAT)
5+ £3.35 £4.02
50+ £3.05 £3.66
200+ £2.90 * £3.48 *
300+ £2.75 * £3.29 *

* Price shown includes kit bulk buy discount

Stock:
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

Description

AttributeValue
PCB Length 45.5mm.
PCB Width 35.5mm.
Voltage Nominal 9V.
Voltage Range 4 - 12V (Absolute Maximum 15V).
Typical Standby Current 4mA.
Current Max at Nominal Voltage 70mA.
