Grove - Temperature and Humidity Sensor

The Grove Temperature and Humidity sensor is a digital relative humidity and temperature sensor with a small footprint that features a grove system connector.

It utilises a TH02 sensor that has a good level of accuracy when used in non extreme climates/conditions. It provides accurate humidity readings from 0-80% (±4.5%) and accurate temperature readings between 0-70°C (±0.5°C). Both the temperature and humidity sensors are factory-calibrated, so no calibration is required.

It has an operating voltage of between 3.3V – 5V and has high reliability and stability and requires an I2C Grove compatible interface.

Features:

• It provides accurate humidity readings from 0-80% (±4.5%) and accurate temperature readings between 0-70°C (±0.5°C).
• Wide operating voltage range:(3.3V ∼ 5V).
• Low Power Consumption.
• Good reliability and stability.
• It operates as an I2C device.
• It is factory-calibrated, so no calibration is required.

Contents:

• 1 x Grove Temperature and Humidity sensor.

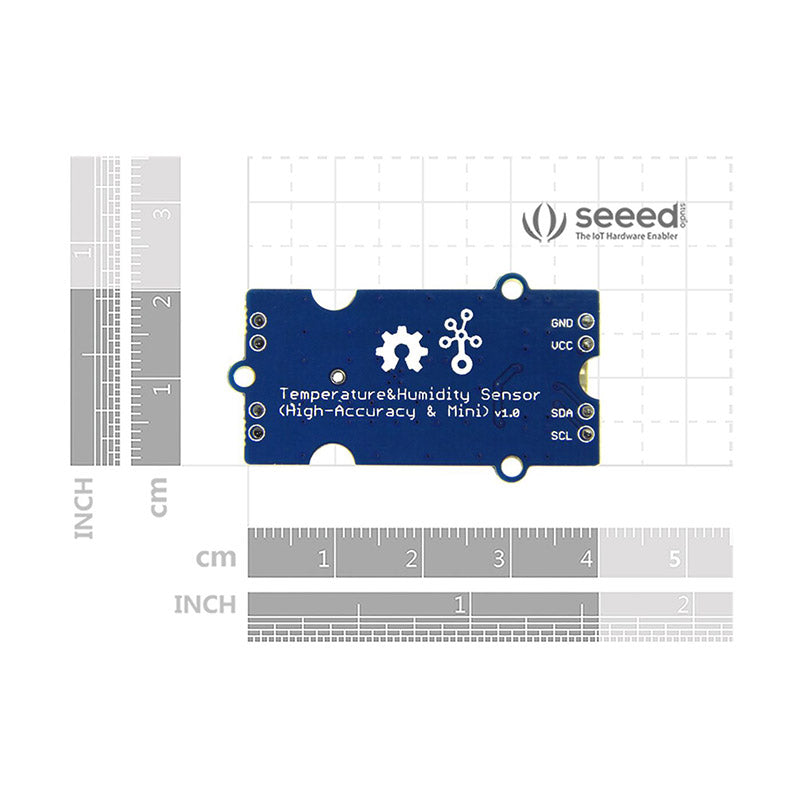

Dimensions:

• Length: 40mmm.
• Width: 20mm.

Requires:

• An I2C grove compatible interface.
• A grove compatible connector cable.

Resources:

• TH02 Datasheet.
• Grove Temp/Hum sensor Github library.
• Introduction to Grove.
