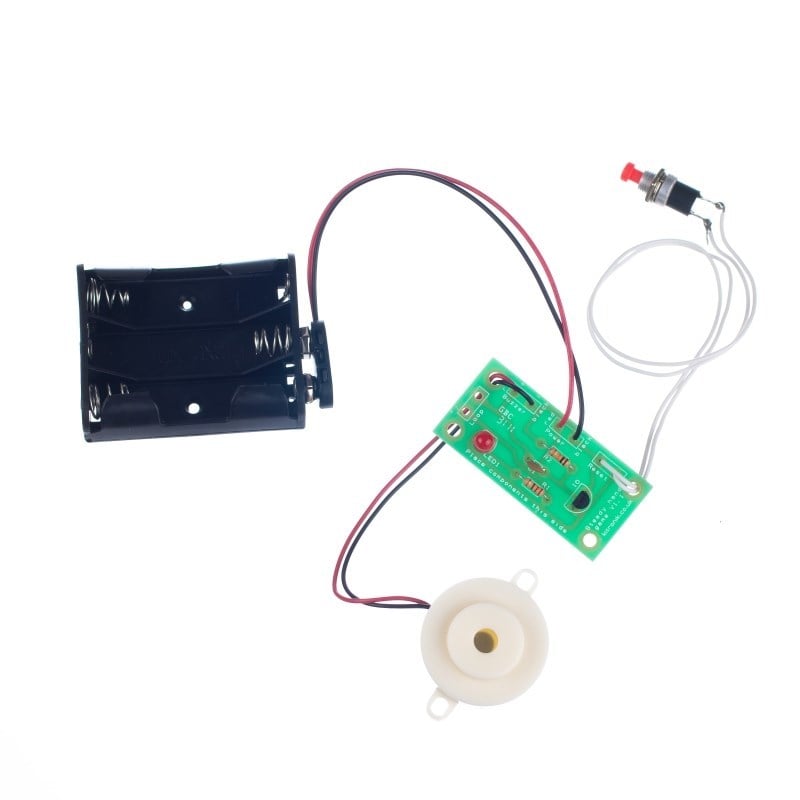

Kitronik Steady Hand Game Project Kit (with Latch) plus batteries
This steady hand game has a buzzer that sounds momentarily when the loop makes contact with the wire.
It also has an LED, which latches on when the buzzer sounds via the use of a thyristor. It then remains on so that even the briefest contact of the loop with the wire can be indicated. A push button is used to reset the LED.
- Buzzer sounds when loop makes contact with wire.
- LED latched until reset button is pressed.
- Bright LED to notify user.
- Loud buzzer sound.

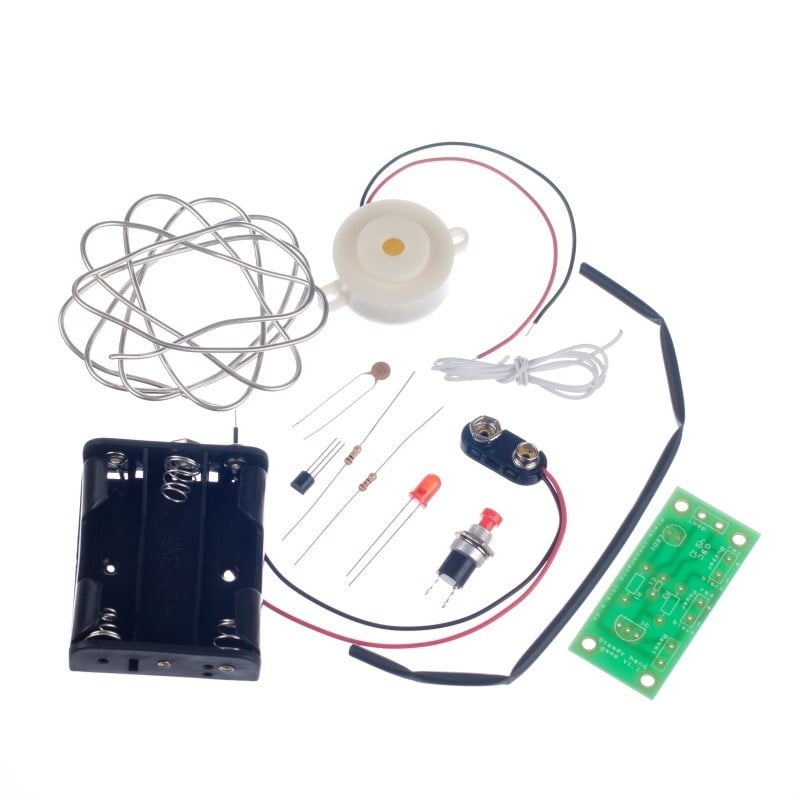

Contents (per kit):
- 1 x PP3 Battery Clip Lead (Heavy Duty).
- 1 x 3xAA Battery Cage with Clip.
- 1 x 1m Extra Flexible Wire, Black.
- 1 x 1m Solid Core Cable.
- 1 x Piezo Buzzer (with Drive).
- 1 x 220R Resistor.
- 1 x 10K Resistor.
- 1 x Capacitor, Ceramic, 50V, 10nF.
- 1 x 2N5061 Thyristor.
- 1 x Red 5mm Diffused LED - 275mCd.
- 1 x Miniature Push to Make Switch, Red.
- 1 x 20cm length Black Heat Shrink, 2.4mm.
- 1 x Steady Hand PCB.
Contents (per pack of 24 kits):
- 24 x PP3 Battery Clip Lead (Heavy Duty).
- 24 x 3xAA Battery Cage with Clip.
- 1 x 25m Reel Extra Flexible Wire, Black.
- 1 x 25m Reel Solid Core Cable.
- 24 x Piezo Buzzer (with Drive).
- 24 x 220R Resistor.
- 24 x 10K Resistor.
- 24 x Capacitor, Ceramic, 50V, 10nF.
- 24 x 2N5061 Thyristor.
- 24 x Red 5mm Diffused LED - 275mCd.
- 24 x Miniature Push to Make Switch, Red.
- 3 x 1m length Black Heat Shrink, 2.4mm.
- 24 x Steady Hand PCB.
- PCB Length: 52mm.
- PCB Width: 25mm.
Requires (per kit):
Requires (per pack of 24 kits):
For a pack of 24 the cables are supplied on reels with the remaining parts being individually bagged, for a pack of 1 the cables are supplied in the bag.
Teachers can order a sample of this kit (one per school) here.
You will need to select the kit from a list of all the sample kits; the stock code for this kit is 2108-01.
Note: this service is only offered to schools for evaluation purposes only.
This product is designed and manufactured in the UK by Kitronik.
