Kitronik Klip Halo for the BBC micro:bit

Save 52%
Stock code: 5632
filler

Pricing:Ex VATInc VAT
1+ £3.50
(excl. VAT)
£4.20
(inc. VAT)
Was £7.35 £8.82
Stock:
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

Buy locally from a partner

Bundled options

Kitronik Klip Halo for BBC micro:bit plus Crocodile Leads

large klip halo for the bbc microbit+ large clip leads pack 10

Total: £5.50ex VAT

Kitronik Klip Halo for BBC micro:bit plus Crocodile Leads and a BBC micro:bit

large klip halo for the bbc microbit+ large clip leads pack 10+ micro:bit V2 board only angled

Total: £18.50ex VAT

Description

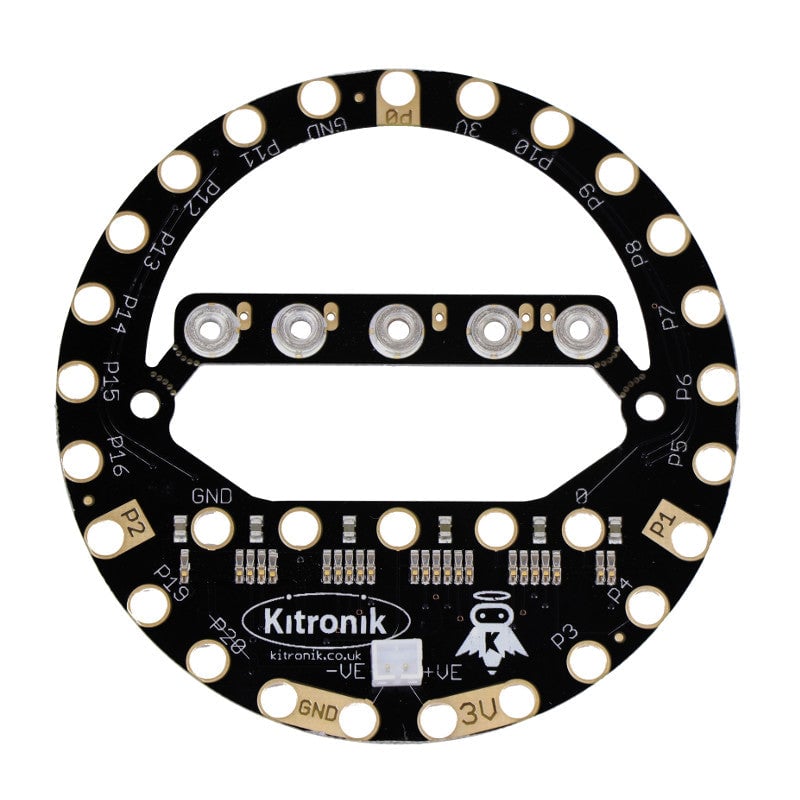

The Klip Halo for the BBC microbit breaks out all of the pins from the microbit to pads spaced around the edge of the Klip Halo. The pads have been carefully designed and spaced so that they are ideal for for use with E-Textiles projects and also for projects that require the use of Crocodile Leads.

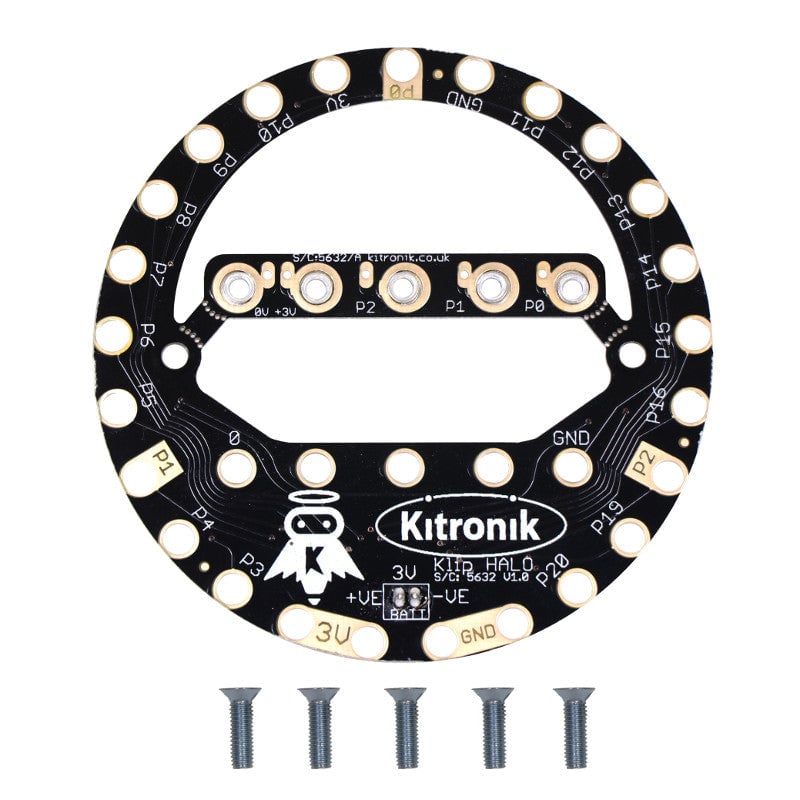

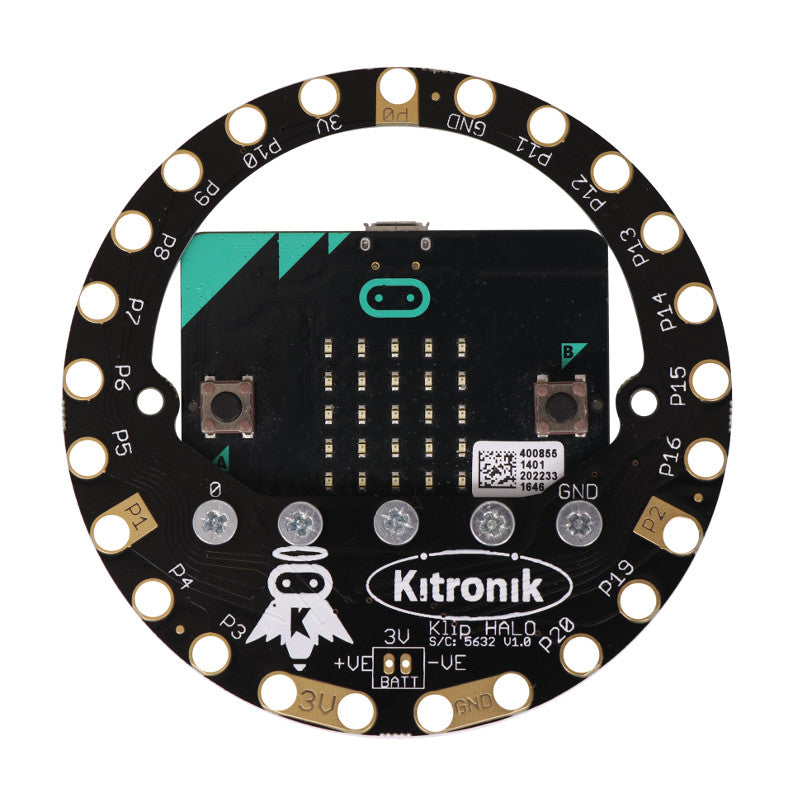

The Klip Halo bolts directly onto the BBC micro:bit using five supplied screws which are secure and robust. The supplied mounting bar is used to fix the microbit to Klip Halo and already contains the required nuts as well as additional solder pads (PO, P1, P2, 3V & GND) should you require them.

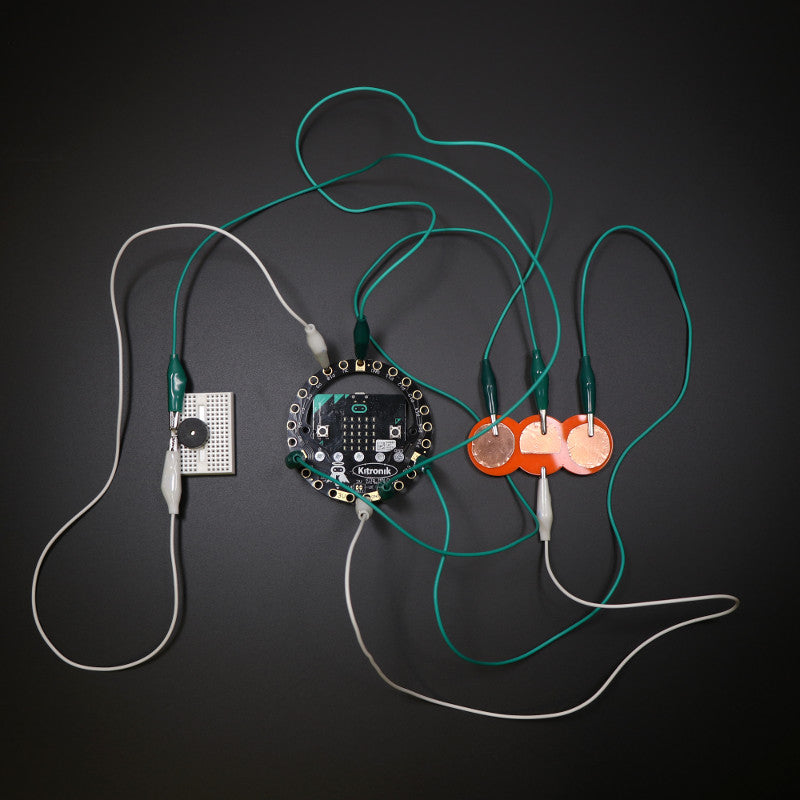

There are multiple power and ground pads so that the same pads don't have to be used for every part of your project, which is a handy feature if you are using Crocodile clips. Power is supplied to the board and the microbit via the rear mounted jst connector.

When a micro:bit is connected to the Klip Halo, power can be supplied in multiple ways. These are via the USB connector on the micro:bit, the JST connector on the micro:bit or Klip Halo, or using the power rings on the Klip Halo. Depending on which option is used effects the maximum and minimum voltage that can be used and the amount of current that can be drawn from the rings on the Klip Halo. For more details and powering safety information, see the power information and safety datsheet for more information.

Supply voltage should be between 1.95V and 3.6V with 3V being the recommended voltage.

Features:

  • All microbit pins broken out to pads that are easy to sew and attach Crocodile clips to.
  • Multiple power and ground pads.
  • Additional solder pads on mounting bar (PO, P1, P2, 3V & GND).
  • Bolts directly onto the BBC micro:bit.
  • Board and microbit can be powered via the jst connector.

Contents:

Dimensions:

  • Diameter: 80mm.
  • Height: 3.2mm
  • Height With micro:bit: 10mm.
  • PCB Thickness: 1.5mm.

Video:



Requires:

  • Screwdriver.

Buy British:

UK flag  This product is designed and manufactured in the UK by Kitronik.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Please note: Instructions for using this product (if available) can be found under the product description.
Adding ZIP Hex LEDs To The Simple Robotics Buggy Kit

A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit

Adding ZIP Hex LEDs To The Simple Robotics Buggy Kit

A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit

Q:
Are longer screws needed when used together with the mi power board shown in the video?
Asked by: Oliver Woods
A:
Hi Oliver, Yes the screws do need to be slightly larger as it needs to go through the spacers for the MI:power board and still go into the nut on the small board that is broken out from the Klip Halo, the screws we used were 16mm in length, https://www.kitronik.co.uk/c2316-pan-head-m2-machine-screw-pack-of-100.html
Answered by: Michael Lockhart
25-Jul-18

Q:
Can we use micro python with this article (Klip Halo for the BBC micro:bit) ?
Asked by: olivier
A:
Hi Olivier, This wouldn't be a problem, the MicroPython is uploaded to the micro:bit and is just a different coding language so this would be fine.
Answered by: Michael Lockhart
27-Mar-18
