High Power Amplifier Kit - Dan Thwaites

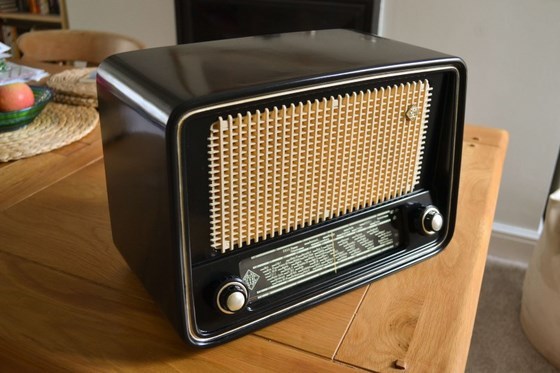

Dan Thwaites sent us these pictures of our High Power Amp kit inside a 1952 German valve radio that was no longer working. He took out the original components and installed the Amp kit. The volume control knob still works as he fitted the potentiometer to it and wired it back to the PCB. The dial faceplate was also originally backlit by two bulbs, so he replaced these with two white LEDs wired in parallel off the board. He also had to extend the power and headphone sockets to fit around the original chassis. We think you'll agree it looks the business!

valve_radio_high_power_amp_kit_01_560 valve_radio_high_power_amp_kit_02_560
