Description
Please Note: BBC micro:bit, 2 x AAA Battery Cage and 2 x AAA Batteries are NOT included. If you also require a BBC micro:bit, you can order one here.
This Prototyping System for the BBC micro:bit is a great way to start making circuits and making experiments without the need to solder.
This prototyping system uses our specially designed Edge Connector Breakout Board for BBC micro:bit that gives full access to the pins on the bottom of the BBC micro:bit. The BBC micro:bit pins are broken out to a row of pin headers, the SCL and SDA pins are separated at the edge of the board providing easy identification. The PCB includes a prototyping area with 3V, 0V and unconnected rows that can be soldered to. This allows easy connection of switches, sensors and any pull-up or pull-down resistors etc. as required.
This prototyping system is used in conjunction with a Small Prototype Breadboard. This makes it easy to connect additional components using the included jumper wires. No soldering required.
Note:
This kit requires assembly.
Features:
- No soldering is required.
- Breaks out 21 pins from the BBC micro:bit using the Pre-built Edge Connector Breakout Board for BBC micro:bit.
- Small Prototype Breadboard included so you can use additional components.
- Run your own custom code from your BBC micro:bit to interact with external components.

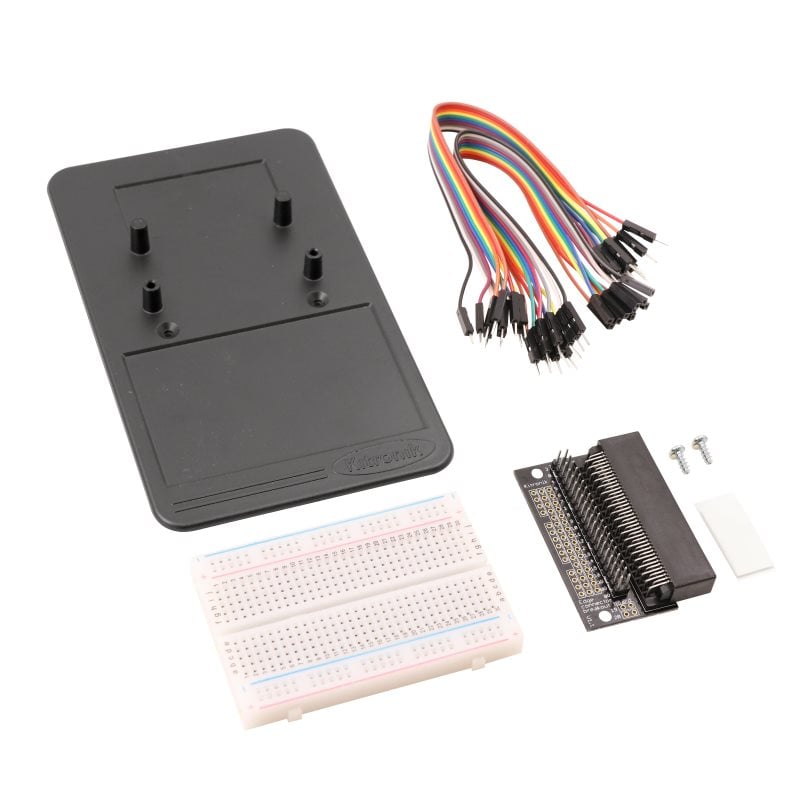

Contents:
- 4 x Pan Head M3 Machine Screws.
- 1 x Small Prototype Breadboard.
- 10 x Jumper Wires Male to Male.
- 10 x Jumper Wires Male to Female.
- 1 x Mounting Plate.
- 1 x Edge Connector Breakout Board for BBC micro:bit - Pre-built.
Video:
Requires:
- 1 x BBC micro:bit.
- 1 x Phillips Screwdriver.
Buy British:
This product is designed and manufactured in the UK by Kitronik.
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
UK Deliveries
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
Collection
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
Further Information
- For information about all of the delivery options we offer see full delivery details.
A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit
A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit
This Pedestrian Crossing project was submitted to us by Thomas Stratford. Thomas started this project to try out the pre-written code that came with the IET Pedestrian Crossing resource. The aim is...
This Pedestrian Crossing project was submitted to us by Thomas Stratford. Thomas started this project to try out the pre-written code that came with the IET Pedestrian...
Q:
Do you sell spare leads for the prototype kit?
A:
Hi John,
Yes we do on the links below
https://www.kitronik.co.uk/c4110-jumper-wires-premium-mm.html
https://www.kitronik.co.uk/c4128-jumper-wires-premium-mf.html
Best
Cullen Lewia
Yes we do on the links below
https://www.kitronik.co.uk/c4110-jumper-wires-premium-mm.html
https://www.kitronik.co.uk/c4128-jumper-wires-premium-mf.html
Best
Cullen Lewia
Answered by: Cullen Lewis
24-May-18
Q:
Hello, can I ask if you could use this prototype board with your microbit mi power board please
Asked by: Brendon Pettit
A:
Hi Brendon, Unfortunately you wouldn’t be able to use the MI:power with the prototyping system as the MI:power screws directly to the pins on the edge of the micro:bit and as such would prevent it from being inserted into the edge connector.
Answered by: Michael Lockhart
14-Feb-17
