How an LDR (Light Dependent Resistor) Works

What is an LDR (Light Dependent Resistor)?

An LDR is a component that has a (variable) resistance that changes with the light intensity that falls upon it. This allows them to be used in light sensing circuits.

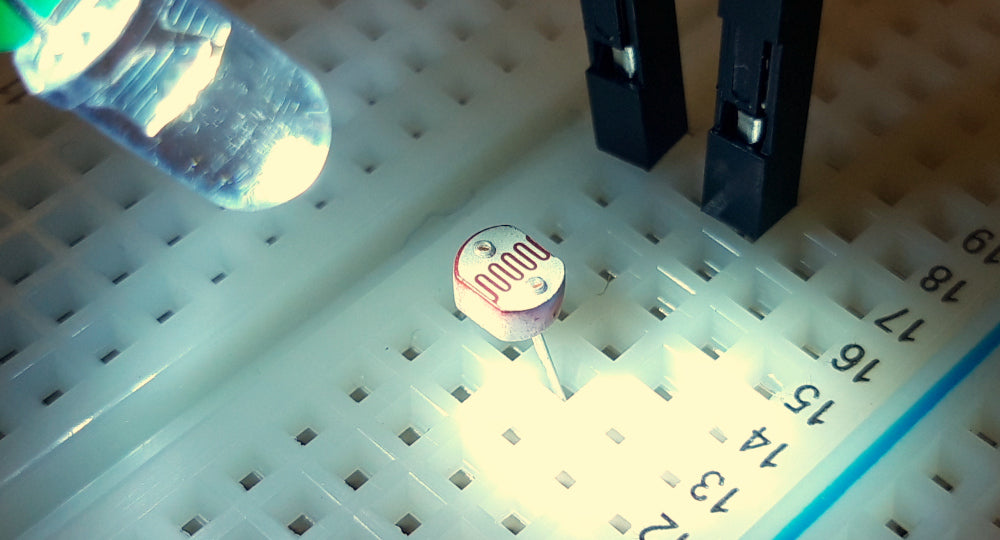

A typical LDR (Light Dependent Resistor)

A typical LDR





Light Dependent Resistor LDR Circuit Symbol
 LDR Circuit Symbol



Variation in resistance with changing light intensity

Typical LDR (Light Dependent Resistor) resistance vs light intensity graph
Typical LDR resistance vs light intensity graph



The most common type of LDR has a resistance that falls with an increase in the light intensity falling upon the device (as shown in the image above). The resistance of an LDR may typically have the following resistances:

Daylight
= 5000Ω
Dark
= 20000000Ω
  You can therefore see that there is a large variation between these figures. If you plotted this variation on a graph you would get something similar to that shown by the graph shown above.

Applications of LDRs

There are many applications for Light Dependent Resistors. These include:

Lighting switch

The most obvious application for an LDR is to automatically turn on a light at a certain light level. An example of this could be a street light or a garden light.

Camera shutter control

LDRs can be used to control the shutter speed on a camera. The LDR would be used to measure the light intensity which then adjusts the camera shutter speed to the appropriate level.



Example - LDR controlled Transistor circuit

LDR (Light Dependent Resistor) controlled transistor circuit
LDR controlled transistor circuit



The circuit shown above shows a simple way of constructing a circuit that turns on when it goes dark. In this circuit the LDR and the other Resistor form a simple 'Potential Divider' circuit, where the centre point of the Potential Divider is fed to the Base of the NPN Transistor. When the light level decreases, the resistance of the LDR increases. As this resistance increases in relation to the other Resistor, which has a fixed resistance, it causes the voltage dropped across the LDR to also increase. When this voltage is large enough (0.7V for a typical NPN Transistor), it will cause the Transistor to turn on. The value of the fixed resistor will depend on the LDR used, the transistor used and the supply voltage.

Phototransistors

In more recent years phototransistors have become more and more popular as unlike LDRs they don't use any nasty materials in the production process. They do exactly the same job as an LDR in that they detect changing light levels however they do electronically work slightly differently.
