This stereo audio amplifier kit can be used with any personal stereo equipment, including MP3 players.
It uses a NJM2073D audio amplifier IC which can output 1W per channel. The kit is supplied with two speakers and a pre-made 3.5mm jack plug.
It works nicely off a 9V battery (not supplied) or if you want to run it of the mains why not try our 12V wall power unit.
Features:
- 1W per channel stereo amplifier.

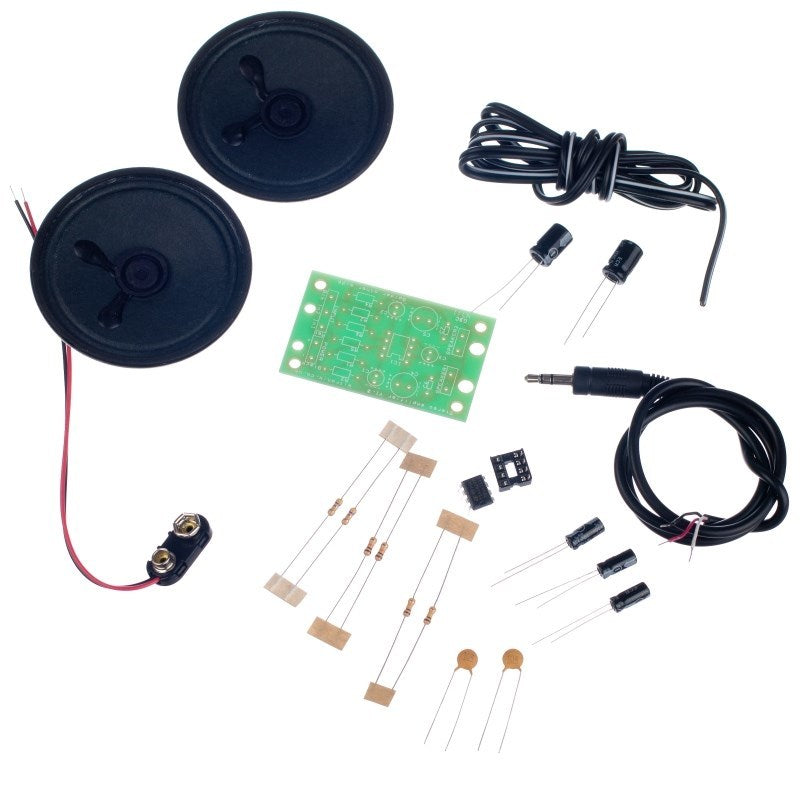

Contents:
- 1 x NJM2073D Stereo Amplifier IC.
- 1 x 8 Pin IC Holder.
- 2 x 10K Resistors.
- 2 x 4.7R Resistors.
- 2 x 100K Resistors.
- 2 x Ceramic Capacitor, 50V, 100nF.
- 2 x Electrolytic Capacitors, 16V, 470uF.
- 2 x Electrolytic Capacitors, 16V, 100uF.
- 1 x Electrolytic Capacitor, 16V, 10uF.
- 1 x Stereo Amp Cable.
- 1 x PP3 Battery Clip Lead (Heavy Duty).
- 2 x 8 Ohm 66mm Speakers.
- 1m Figure 8 Speaker Cable 2x (7×0.18mm).
- 1 x Stereo Amplifier PCB
Dimensions:
- PCB Length: 58mm.
- PCB Width: 35mm.
Requires:
- Either: 1 x Zinc Chloride PP3 Battery.
- Or: 1 x 12V Wall Power Unit and 1 x 2.1mm PCB Mount DC Socket.
- Soldering Iron.
- Solder.
- Wire Cutters.
- Wire Strippers.
Resources:
-
Click here to download the essential information.
-
Click here to download the full teaching resources.
- Click here to download Autodesk files for this product.
- 3D CAD Files.
- Click here to find out more about Autodesk.
-
Datasheet.

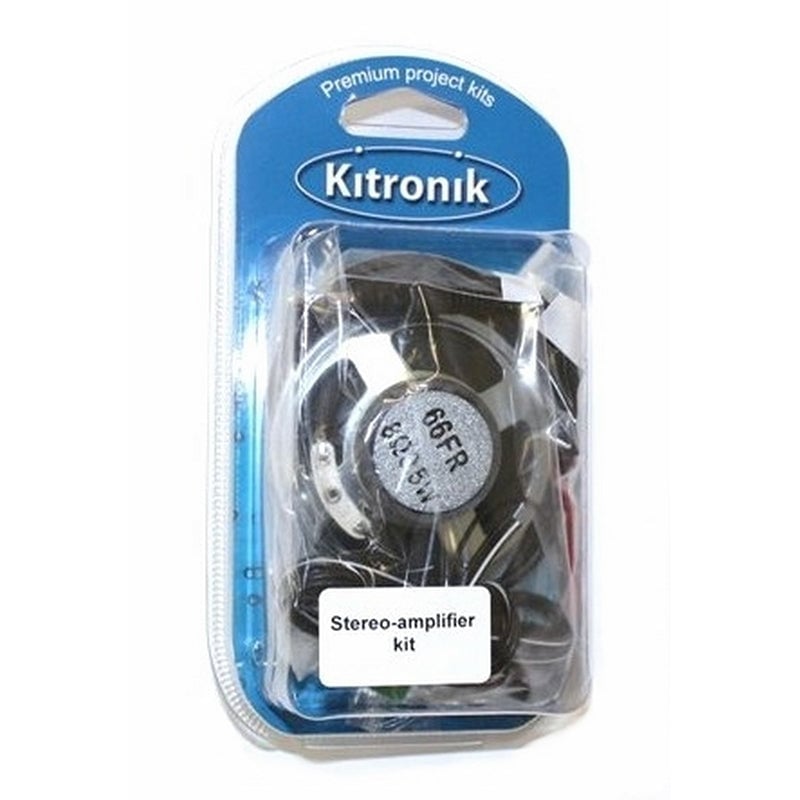

This kit is supplied in a blister retail packaging. It is also available in a simple grip seal bag and bulk quantities for more details on this version click here.
