Kitronik Stereo Amplifier

Stock code: 2136
filler

Pricing:Ex VATInc VAT
1+
£5.15
£6.18
5+ £4.00 £4.80
50+ £3.75 £4.50
200+ £3.56 * £4.28 *
300+ £3.38 * £4.05 *

* Price shown includes kit bulk buy discount

Stock:
In stock

Bundled options

Kitronik Stereo Amplifier plus PP3 battery

large mp3 stereo amplifier kit+ large zinc chloride batteries

Total: £5.70ex VAT

Kitronik Stereo Amplifier plus PP3 battery

large mp3 stereo amplifier kit+ large zinc chloride batteries+ large soldering starter kit

Total: £17.55ex VAT

Description

AttributeValue
PCB Length 58mm.
PCB Width 35mm.
PCB Component Count 21.
Voltage Nominal 9V.
Voltage Range 2V - 15V.
Standby Current 7.5mA.
Current Max at Nominal Voltage 180mA.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Gallery Stereo Amplifier - Barry Comprehensive School

These MP3 Stereo Amplifiers were made by A Level Product Design students at Barry Comprehensive School.

Gallery Stereo Amplifier - Barry Comprehensive School

These MP3 Stereo Amplifiers were made by A Level Product Design students at Barry Comprehensive School.

Gallery Stereo Amplifier - Richmond College

These Stereo Amplifiers have been made by AS Level students at Richmond upon Thames College and were designed using the influence of Dieter Rams.

Gallery Stereo Amplifier - Richmond College

These Stereo Amplifiers have been made by AS Level students at Richmond upon Thames College and were designed using the influence of Dieter Rams.

Stereo Amplifier Designs From The James Hornsby School

Steve Tucker the Faculty leader for Design and Technology at The James Hornsby School in Basildon in Essex sent us these fantastic images of student stereo amplifier designs.

Stereo Amplifier Designs From The James Hornsby School

Steve Tucker the Faculty leader for Design and Technology at The James Hornsby School in Basildon in Essex sent us these fantastic images of student...

Stereo Amplifier Kit - Milton Abbey School featured image

This wonderful example of our Stereo Amplifier Kit was sent in by James Ratcliffe at the Milton Abbey School in Dorset.

Stereo Amplifier Kit - Milton Abbey School featured image

This wonderful example of our Stereo Amplifier Kit was sent in by James Ratcliffe at the Milton Abbey School in Dorset.

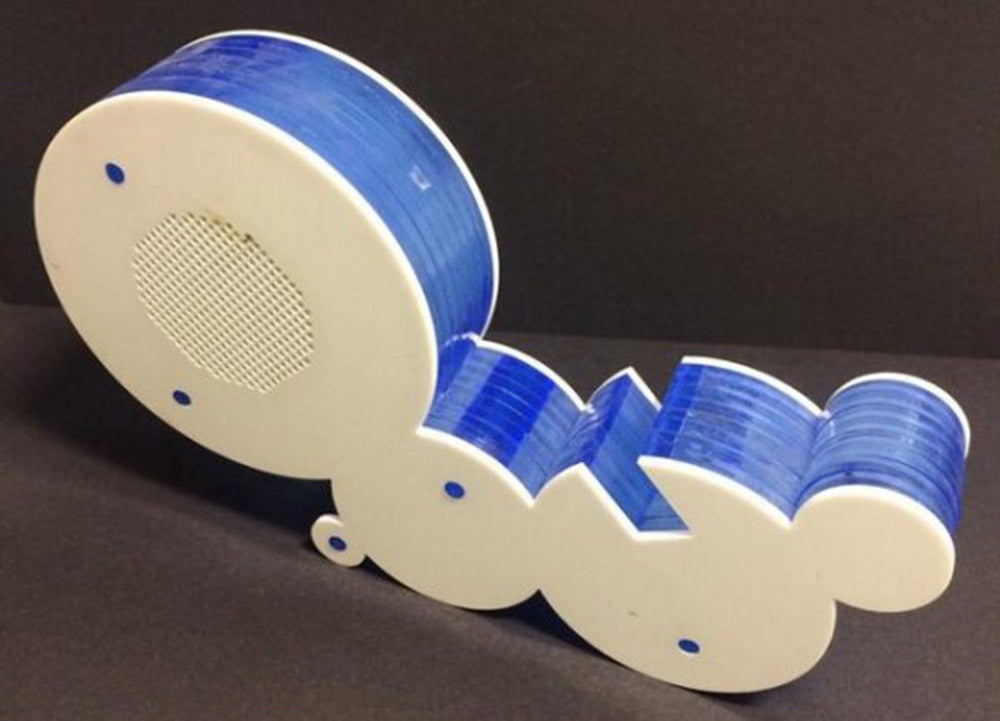

MP3 Docking Stations - Northfield School featured image

Northfield School's D&T Department (@Northfield_DT) have shared these MP3 docking stations with us on Twitter. End of year assessments - DONE - great work!

MP3 Docking Stations - Northfield School featured image

Northfield School's D&T Department (@Northfield_DT) have shared these MP3 docking stations with us on Twitter. End of year assessments - DONE - great work!

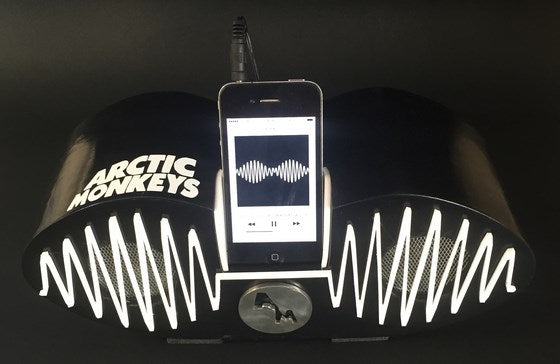

Arctic Monkeys Dock - Selston High School

Last week, we spoke to Mr Mears from Selston High School about this fantastic Arctic Monkeys dock we saw on Twitter. The dock was made by one of his students...

Arctic Monkeys Dock - Selston High School

Last week, we spoke to Mr Mears from Selston High School about this fantastic Arctic Monkeys dock we saw on Twitter. The dock was made...

Gallery Stereo Amplifiers - Meadows Community School

This range of stereo amplifiers has been made by spacing a number of sheets of CNC cut MDF / PVC. This work was produced by year 10 students at the...

Gallery Stereo Amplifiers - Meadows Community School

This range of stereo amplifiers has been made by spacing a number of sheets of CNC cut MDF / PVC. This work was produced by...

Gallery Stereo Amplifiers - Audenshaw School featured image

Richard Bond at Audenshaw School wrote: "These are examples of MP3 Amplifiers that our 6th form students have made as part of their A'Level Product Design course. Some use the...

Gallery Stereo Amplifiers - Audenshaw School featured image

Richard Bond at Audenshaw School wrote: "These are examples of MP3 Amplifiers that our 6th form students have made as part of their A'Level Product...

Please note: Instructions for using this product (if available) can be found in the product description.
Soldering School - Kitronik University

How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What is soldering? Soldering is a...

Soldering School - Kitronik University

How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What...

Amplifier/Speaker Case 3D Printing Resources

This resource has been designed to show how you can use our Mono and stereo amplifier module kits as the basis for a 3D printing project. Speaker cases are a great...

Amplifier/Speaker Case 3D Printing Resources

This resource has been designed to show how you can use our Mono and stereo amplifier module kits as the basis for a 3D printing project....

Kitronik Amplifier Kit Comparison - Which Is Right For You

Find out which Kitronik Amp kit is right for you with this Amplifier Kit Comparison guide. There are seven kits included, and each amp has very unique features. Whether the...

Kitronik Amplifier Kit Comparison - Which Is Right For You

Find out which Kitronik Amp kit is right for you with this Amplifier Kit Comparison guide. There are seven kits included, and each amp has...

Q:
What is the speaker wattage output? Ta.
Asked by: John
A:
Hi John, These kits use 0.5 W Speakers. Best Regards Cullen
Answered by: Cullen Lewis
25-Mar-20

Q:
Could this be powered by a 5 volt supply? Thanks
Asked by: Joshua
A:
Hi Joshua, Thank you for your question, I am afraid not. This would normally need to run from a 9V to 12V supply I am afraid. Best Regards Cullen
Answered by: Cullen Lewis
07-May-19

Q:
Whats the best way to add a volume control to this kit, in addition the the volume control on the MP3 player itself
Asked by: Simon
A:
We do a deluxe version of the stereo amplifier which includes a volume control, power LED, on/ off switch and optional DC jack plug, for product details see: http://www.kitronik.co.uk/products/project-kits/ic-based-kits/deluxe-stereo-audio-amplifier-kit/
Answered by: Geoff Hampson
25-Jan-13

Q:
can i add leds to this board
Asked by: matthew whitbread
A:
Yes you can add an LED, there is an explanation of how to do this on the following page: http://www.kitronik.co.uk/resources/tutorials/how-to-add-a-power-switch-and-led-to-your-project-kit/
Answered by: Geoff Hampson
12-Dec-12

Q:
Which is the best way to mount/secure the speakers, (they do not seem to have holes in the corners)?
Asked by: Alan Murrell
A:
There are a number of ways that the speaker can be secured; here are some of the things I've seen done: Glue it in place. Use a piece of material with an 18mm hole in it to clamp the back of the speaker in position. (A good solution for laser cut cases). Use some self tapping screws to hold some wire across the edge of the speaker.
Answered by: Geoff Hampson
22-Jun-11

Q:
Please can you tell me were the instructions are?
Asked by: Alfie
A:
The teaching notes are supplied with the kit as an A5 printed booklet. School purchasing kits are also sent a resource CD which includes an electronic version of all our notes. A very cut down version can be downloaded for some products including this one, see description above
Answered by: Geoff Hampson
05-Apr-11

Q:
Hi what are the dimensions of the PCB and the speakers?
Asked by: suzie mcnulty
A:
The speaker size is 66mm (dia), 20mm deep. The PCB measures 58 x 35mm.
Answered by: Geoff Hampson
28-Mar-11

Q:
I wish to order some spare micro chips for the sterio kits what type are they? and can i buy spares from you?
Asked by: Lois McLaughlin
A:
The IC used in this kit is a TDA2822M there is now a link to the product page for the chip, click on the text TDA2822M in the desription at the top of this page. Please note this product is not in the 2010 / 2011 catalogue.
Answered by: Geoff Hampson
09-Mar-11

Q:
Hi, Can this kit be connected up with an iphone/pod dock (instead of the 3.5mm jack) and different speakers? Thanks
Asked by: Chris Mills
A:
We have tried this kit with an iPod and whilst it does work there is no volume control on the iPod or on the amplifier kit so you get the music played at full volume which is inevitable distorted. I suspect that an iPhone will be the same as the iPod, but haven't tried this. It would be possible to use two potentiometers to create a volume (and balance control). The speakers could be changed however the IC on the board will only drive 1W into each speaker so you wouldn't necessarily hear the benefit of using better speakers.
Answered by: Geoff Hampson
02-Mar-11
