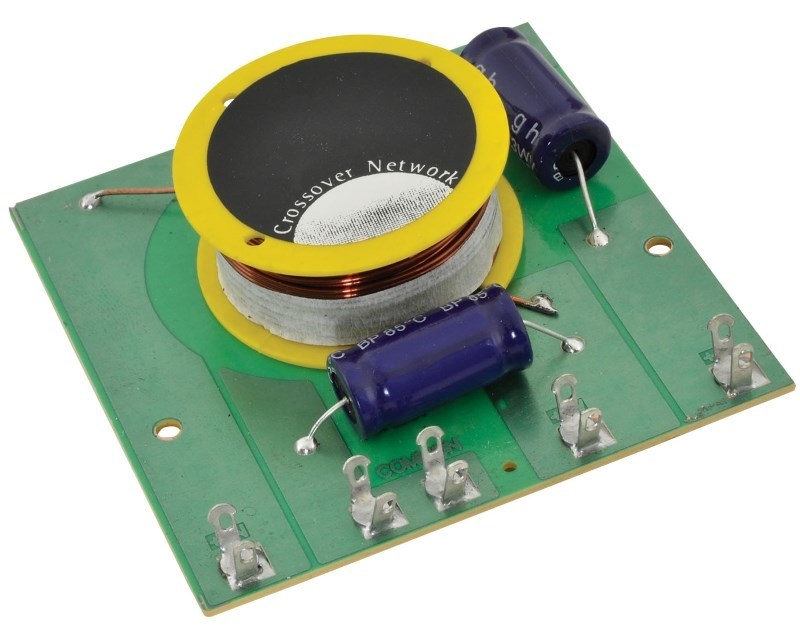

250W 2 Way Passive Crossover

Save 37%
Stock code: 3330
filler
Pricing:Ex VATInc VAT
1+ £3.50
(excl. VAT)
 £4.20
(inc. VAT)
Was £5.53 £6.64
Stock:
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.
Quick links




Description

AttributeValue
Length 86mm.
Width 86mm.
Height 23mm.
Damping 12dB/Oct.
Impedance 8 Ohms.
Frequency 2.5kHz.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Q:
https://kitronik.co.uk/products/3325-250w-8-ohm-200mm-kevlar-cone-woofer
https://kitronik.co.uk/products/3328-100w-8-ohm-85mm-piezo-tweeter
So I was thinking about buying both of the above as well as this crossover, however is there any way you can have 2 woofers and 2 tweeters which all share the same crossover?
Also would the above components work this this crossover fine and if not which ones would?
Many thanks.
Asked by: Robert Walker
A:

You could have two woofers and two tweeters wired in series to the one crossover. However it wouldn’t increase the volume or make the sound quality any better. You would also only be able to connect the crossover up to one channel on your amplifier. As such you would be better having two crossovers, connecting one woofer and tweeter to each crossover. This would give you the best sound output result.

Answered by: Michael Lockhart
14-Jun-16

Q:
Hi. Built many speakers before and never came across a crossover like this. With a +IN, +W(oofer), +T(weeter), +COM. No negative terminals anywhere... how is it meant to work? Sorry, but this doesn't make any sense. Please reply asap as a customer is waiting to receive his product, and I haven't even started soldering it yet... Thanks, Caleb.
Asked by: Caleb
A:
Hi Caleb,

Thank you for your question, I do apologise I thought I had already added an answer for this one. +COM or Common is the ground or negative it's another word for the same thing. To wire this up you would have the input from the board out to the input on the cross over (+IN). Then +W would be the positive for the woofer and one of the commons for the negative. The same for the tweeter with +T as the positive and a common as the negative.
Answered by: Cullen Lewis
15-Aug-18
Q:
I have been using these passive crossovers with students at our school and wondered if you have a circuit diagram for the crossovers?
Asked by: Howard
A:
Hi Howard, I have now received an update from our supplier. Unfortunately as they are not the manufacture they do not have a circuit diagram for the product and they are unable to obtain one. As such we are unable to provide any further documents for this product. Sorry.
Answered by: Michael Lockhart
17-Oct-17
Q:
I have recently purchased 2 way passive crossovers to work with Bluetooth amp. Do they work together? Also I have received the one on the store page not the one in the instructions PDF. There is no indication of how this should be wired up as there is a terminal for tweeters and woofers. Also 2 common terminals with no designation. The PDF suggests there should be a 4K terminal and a 2k terminal, should I wire straight from + on speaker to + on woofer and the same again with -. In this config it didn't work.

Many thanks

Asked by: Chris saunders
A:

Hi Chris, In the blog on how to use a cross over, use-2-way-passive-crossover it states that it should be used with our high powered amp kit or an equivalent amp kit. The Bluetooth kit outputs 3W per channel and as such is less than the high powered amp kit so it is unlikely that you would get the most from this crossover. The one listed in the PDF is a lower power crossover which we now don’t stock. I have advised our web team that this needs to be updated. However the connections should be as follows, + speaker output from the amp kit to the + input on the crossover, - from the amp kit to one of the common terminals on the crossover. Then the + from the woofer and tweeter go to the individual terminals on the crossover and the negative from both would go the either one of the common terminals.

Answered by: Michael Lockhart
26-Jan-17
