I was wondering how i would hook this up to the deluxe stereo amplifier kit and what speakers would be best to maximise the kit as the 20W speakers are too big because personally I dont want to run the speakers that come with the kit.

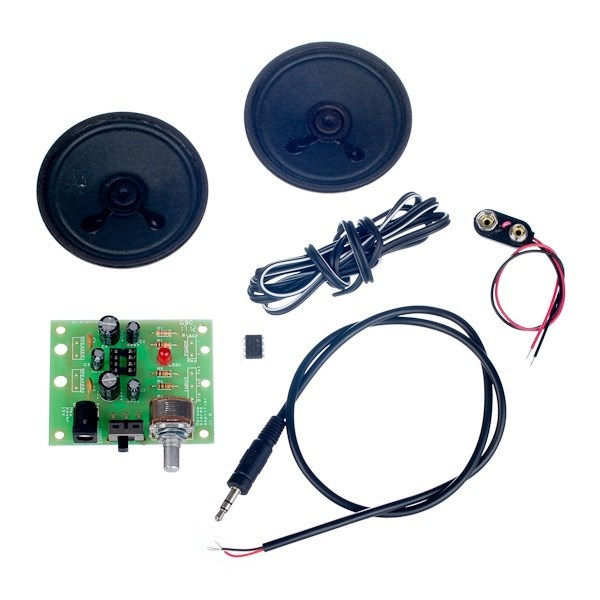

The pre-built version of the amplifier kit allows you to focus more on product design. The stereo amplifier kit is supplied with all the resistors, volume control, capacitors, power switch & IC holder fitted. Students just need to finish it by connecting the jack lead, speakers & power clip to the board.
Available with an iPod connecting lead (Please note this is not the Lightning connector used on the some Apple devices such as the iPhone 5. Adapters are available) or a 3.5mm jack lead.
This deluxe amplifier kit can be used with any personal stereo equipment, including MP3 players. The kit has a volume control & power LED. It can be powered by a batteries connected to the PP3 clip or a DC power module can be plugged in when the batteries automatically disconnect and the power supply is used. The kit can be powered off a 2V to 15V supply, though the volume is better with a higher supply. It uses a TDA2822M audio amplifier IC which can output 1W per channel.
PCB dimensions: 62mm x 50mm.
It has a PP3 battery clip and can run off any voltage from 2 to 15 volts.
It works nicely off a 9V battery (not supplied) or if you want to run it of the mains why not try our 12V wall power unit.
Output power at 9V is 1W per speaker. See the datasheet for more details.
This product is designed and manufactured in the UK by Kitronik.
