Customer Notice (New Bluetooth App):

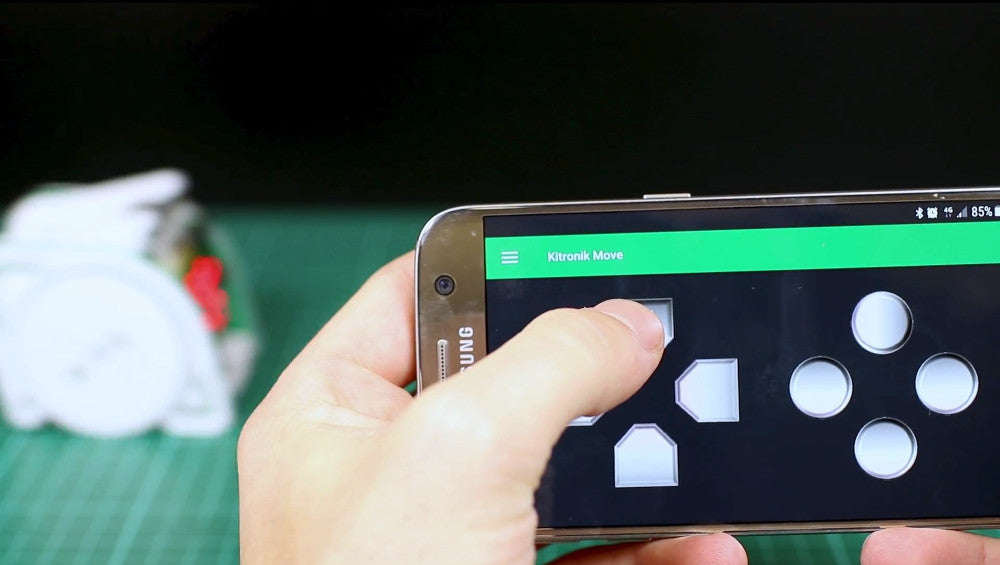

We have recently produced a new Google Play Store app called Kitronik Bluetooth Control. This Android app allows you to control a Kitronik Kitronik :MOVE mini buggy over Bluetooth. The new Kitronik Bluetooth Control app replaces our previous Android app that features in this resource. We suggest that you switch to this new app for a better and more consistent experience. See the links below for more details.
- Kitronik Bluetooth Control App - Google Play Store.
- Kitronik Bluetooth Control App - How to Guide.
This Resource:
This is a short guide detailing pairing a microbit that's already attached to a :MOVE mini. If you forgot to pair it with your phone before completing assembly, then this is the guide for you! We'll show you that having an inaccessible reset button is not a problem.
How frustrating is it when you've put something together only to find that you neglected an important step early on. We've all been there! Sometimes it's as simple as forgetting to thread a flex through plug cover, and sometimes...
Pairing A microbit That's Attached To A :MOVE mini:
Fortunately, this is one of the rare cases when forgetting a step doesn't matter! No dismantling is required, and no :MOVE minis will be harmed during this procedure! In the following video, we show how you would usually manage the pairing process. Below the video, we detail how the process changes for a microbit that is already connected to a Servo:Lite board. The Servo:Lite board has a handy On/Off switch, located at the top of the board. This switch is still fully accessible when the board is inserted into a :MOVE mini chassis. You can use this switch instead of using the reset button on the microbit.
So, to start the pairing process you:
- Ensure the power button on the Servo:Lite board is in the off position.
- Press the A and B buttons on the microbit simultaneously.
- Turn the Servo:Lite board power switch into the On position, whilst still holding the A and B buttons.
Useful Links:
- The Kitronik Move App For Android (V1 for Android versions 4.0 - 8.0).
- :MOVE:mini buggy Kit.
- Adding Bluetooth control to :MOVE mini.
- Servo:Lite Board For The BBC micro: bit.
- FREE Coding and Project guides for the BBC micro:bit.
- Parent's Complete Guide To The BBC micro:bit (Free).
